Medical Center Repeaters

VHF/UHF Cross Band FM Repeaters

147.380 MHz (+ offset & 162.2 Hz PL tone)
443.875 MHz (+ offset & 162.2 Hz PL tone)

All-Star Network 900 MHZ FM Repeater

927.050 MHZ (- offset & 110.9 Hz PL tone)

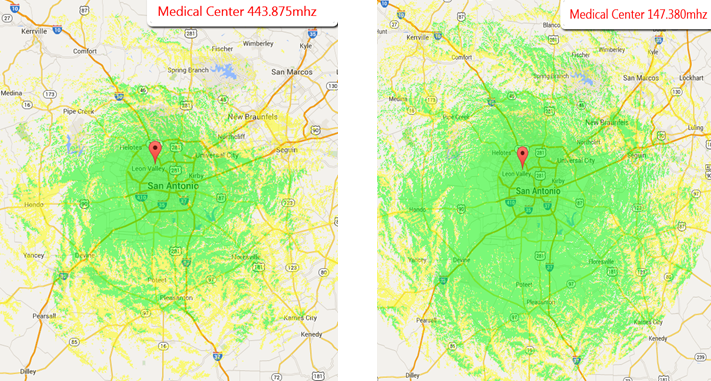

Est Repeater Range Map

The 2m and 70cm machines are linked together, providing cross-band 2m-70cm/70cm-2m operation as well as the normal 2m-2m and 70cm-70cm operation.

The 2m and 70cm repeaters are manufactured by Bridgecom Systems and have a 100% duty cycle rating at a full 50 Watts. NOAA Weather Radio Alert is automatically rebroadcasted on the 2 meter side of this system when severe weather alerts are issued.

The 33cm Repeater is a custom build repeater with a 30 watt  PA designed by Tom Apel, K5TRA that is linked to a nationwide All-Star Network.

Link Status Click Here

Club Nets take place on these linked repeater:

Mondays, Saturdays and Sundays.
